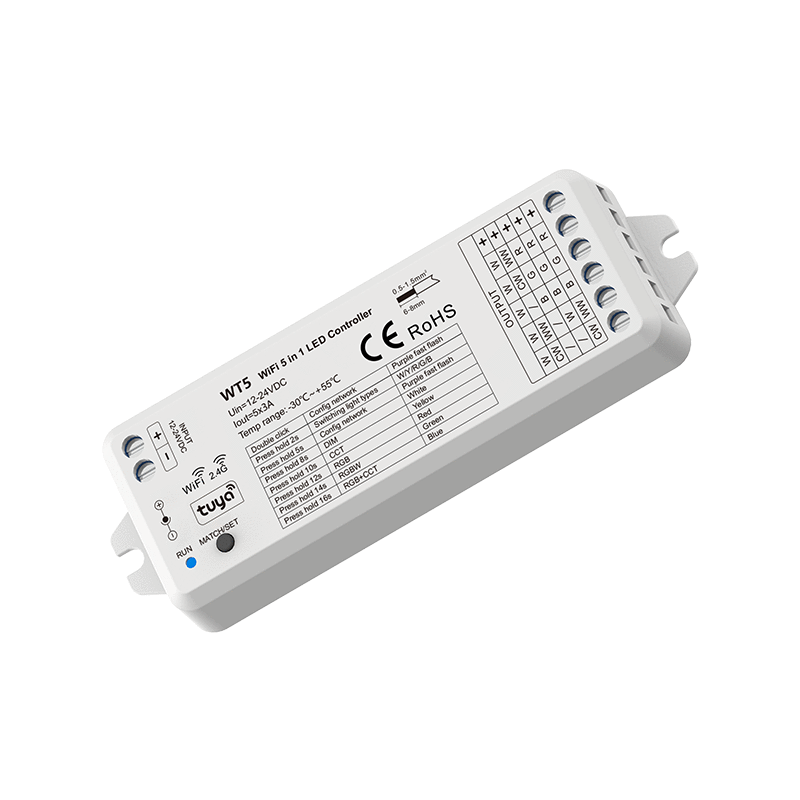

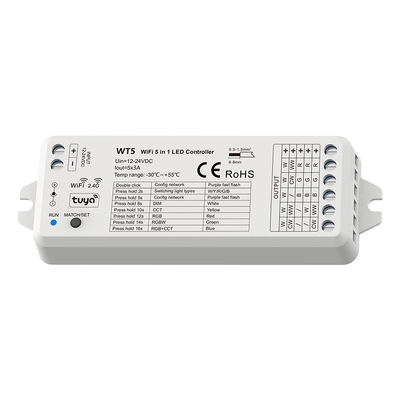

WT5 5-Channel WiFi & RF LED Controller

What it’s for: full app, voice and remote control of RGBW strip — and every other strip type. The SkyDance WT5 is a 5-in-1 receiver: one controller that runs RGB, RGBW, RGB+CCT, tunable white or white (single-colour) strip, selected with a press of the set key. Five 3A constant-voltage output channels, Tuya WiFi plus SkyDance RF 2.4G, and full colour control from the app — colour wheel, saturation, dynamic modes and music sync.

Control it from the Tuya Smart app (colour, colour temperature, brightness, scenes, timers, schedules and music play), by voice through Amazon Alexa or Google Assistant, or from our RF wall panels. Driving more than a few metres of RGBW strip? Pair it with the EV4 power repeater — see the guide below.

How much strip can it drive? We rate each unit with a 20% safety buffer — take its maximum output current, divide by 1.2 so it never runs flat out, and multiply by 24V. That gives the safe maximum length of our 14.4W/m strip you can run from it.

Which controller & repeater for which strip?

• White (single-colour) strip — WT1 controller + EV1-X repeater
• CCT (tunable white) strip — WT1 controller + EV2 repeater
• RGBW strip — WT5 controller + EV4 repeater

Key features

• Drives up to ~240W of RGBW strip (about 60W per channel) — sized with a 20% safety buffer
• 5-in-1: RGB, RGBW, RGB+CCT, CCT or white (single-colour) strip — one controller for all
• 5 output channels at 3A each — 15A total, constant voltage
• Tuya WiFi and RF 2.4GHz inputs — app and wall panels work together
• Full colour control: colour wheel, saturation, 10 dynamic modes and music sync
• Voice control: Amazon Alexa · Google Assistant · Tmall Genie · Xiaodu
• 1000Hz PWM · 4096 dimming levels · logarithmic curve — smooth 0–100% dimming
• Timers, schedules, delay-off and editable scenes in the Tuya app
• Doubles as a WiFi–RF converter — brings other SkyDance RF receivers into the app
• 30 m RF range — pairs with our glass wall panels in seconds
• Reverse polarity, over-heat and short-circuit protection

In the box

• 1 × WT5 WiFi & RF 5-in-1 controller
• User manual

Works with

• Our 24V LED strip reels
• SkyDance RF wall switches — pair a glass touch panel in seconds
• EV4 4-channel power repeater — for long RGBW runs
• Our 24V LED drivers

3-year warranty.

For wiring, Tuya app pairing and full technical detail, the official SkyDance user manual is attached at the bottom of this page.
