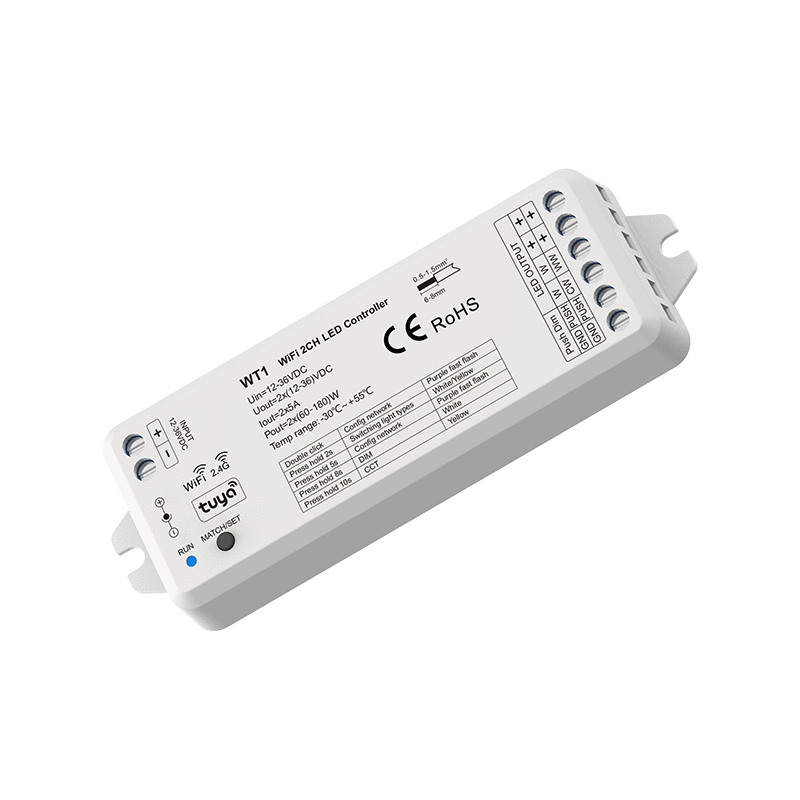

WT1 2-Channel WiFi & RF LED Controller

What it’s for: app, voice and remote control of white or CCT strip. The SkyDance WT1 is the receiver at the heart of a smart 24V strip circuit — wire it between the driver and the strip and it puts the lights on your phone over Tuya WiFi, on your voice assistant, and on any SkyDance RF 2.4G wall panel or remote. Two 5A output channels: set it to DIM for one or two white (single-colour) circuits, or CCT to sweep a tunable-white strip from warm to cool.

Control it three ways, side by side: the Tuya Smart app (on/off, brightness, colour temperature, timers, schedules and scenes), voice through Amazon Alexa or Google Assistant, and our RF wall panels. Running more than a few metres of strip? Pair it with a power repeater — see the guide below.

How much strip can it drive? We rate each unit with a 20% safety buffer — take its maximum output current, divide by 1.2 so it never runs flat out, and multiply by 24V. That gives the safe maximum length of our 14.4W/m strip you can run from it.

Which controller & repeater for which strip?

• White (single-colour) strip — WT1 controller + EV1-X repeater
• CCT (tunable white) strip — WT1 controller + EV2 repeater
• RGBW strip — WT5 controller + EV4 repeater

Key features

• Drives up to ~200W of 24V strip (about 100W per channel) — sized with a 20% safety buffer
• 2 output channels at 5A each — 10A total, constant voltage
• Tuya WiFi and RF 2.4GHz — app and wall panels work together
• Switchable DIM (white) or CCT (tunable white) light types
• Voice control: Amazon Alexa · Google Assistant · Tmall Genie · Xiaodu
• 2000Hz PWM · 4096 dimming levels · logarithmic curve — smooth, flicker-free dimming to 0–100%
• Timers, schedules, delay-off and editable scenes in the Tuya app
• Doubles as a WiFi–RF converter — brings other SkyDance RF receivers into the app
• 30 m RF range — pairs with our glass wall panels in seconds
• Reverse polarity, over-heat and short-circuit protection

In the box

• 1 × WT1 WiFi & RF controller
• User manual

Works with

• Our 24V LED strip reels
• SkyDance RF wall switches — pair a glass touch panel in seconds
• EV1-X 1-channel power repeater — for long white runs
• EV2 2-channel power repeater — for long CCT runs
• Our 24V LED drivers

3-year warranty.

For wiring, Tuya app pairing and full technical detail, the official SkyDance user manual is attached at the bottom of this page.
