Shelly Wall Display XL

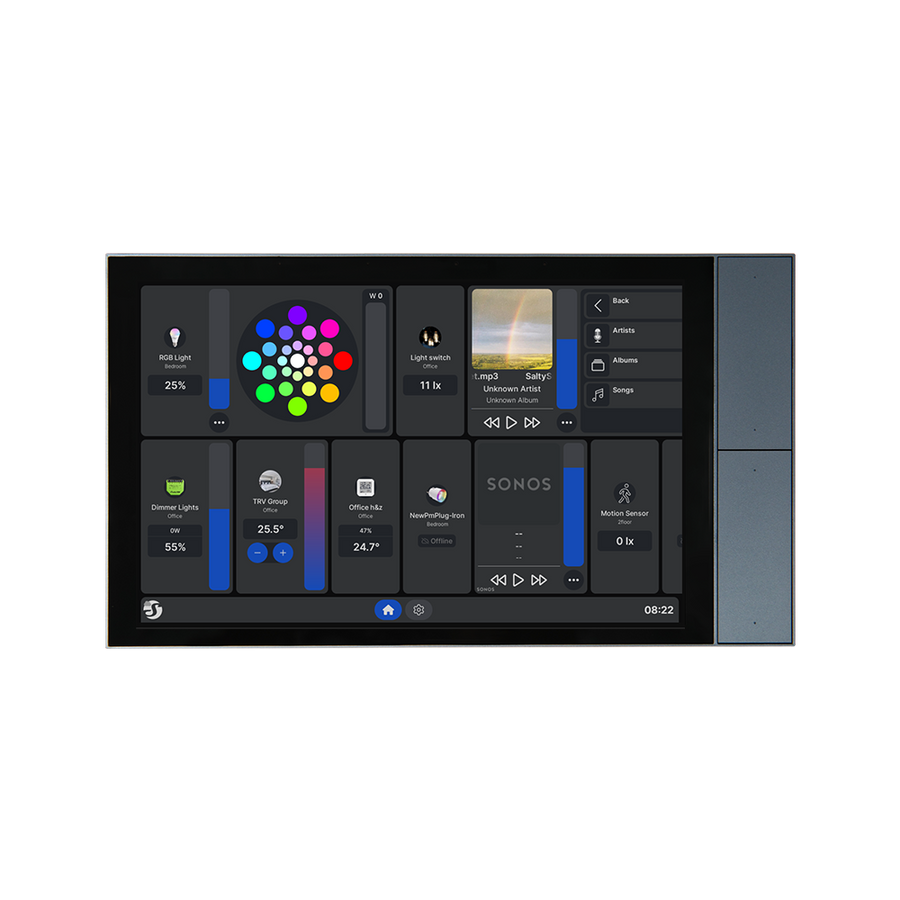

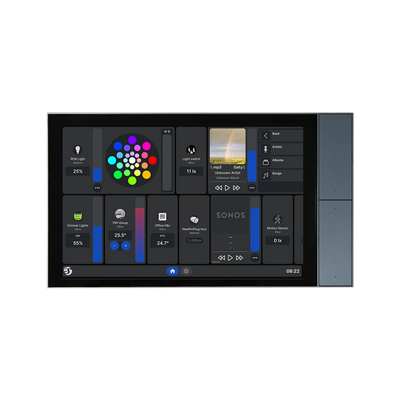

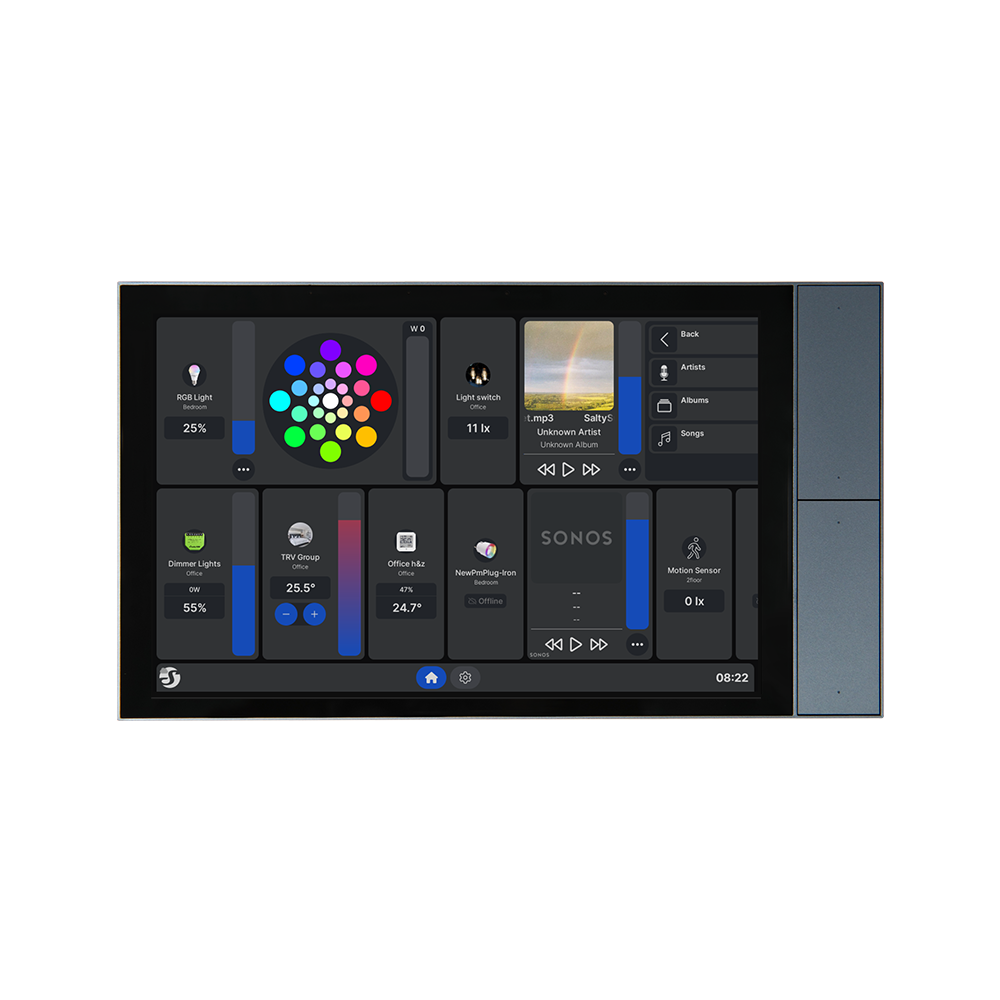

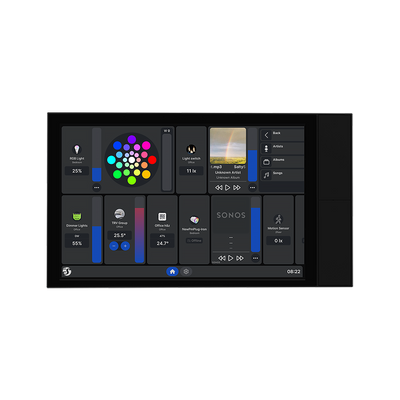

What it’s for: the central controller for all your Shelly devices. The Shelly Wall Display XL is a 10.1″ touchscreen control panel that mounts in a standard wall box and puts your whole smart home on the wall — lights, blinds, heating, scenes and schedules, plus live power consumption for every device in the room.

The fully customisable home screen shows the rooms, devices and scenes you use most. An integrated relay switches a local circuit directly, two built-in 2 W speakers handle alarms, notifications and music, and integrated light sensors drive brightness-based automations. Four physical side buttons are fully customisable — volume, relay, scenes or media. It can even connect to Bluetooth or Sonos speakers for whole-room audio control.

Key features

• 10.1″ 5-point capacitive touchscreen, 1280 × 752, customisable layout
• Central control for every Shelly device — scenes, schedules, rooms
• Room power-consumption monitoring at a glance
• Integrated relay for direct appliance/light control
• 2 × 2 W integrated speakers — alarms, notifications, music
• Integrated light sensors for adaptive automations
• 4 customisable physical buttons (volume, relay, scenes, media)
• Bluetooth & Sonos speaker integration

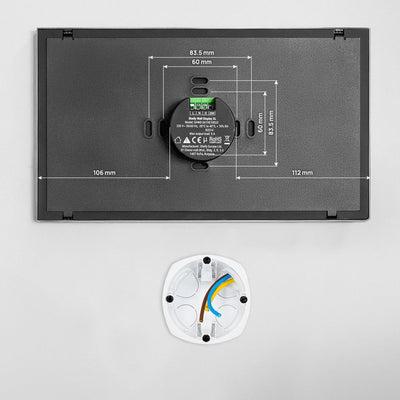

• Mounts in a standard electrical wall box

In the box

• 1 × Shelly Wall Display XL
• Mounting hardware
• Quick start guide

Compatible with

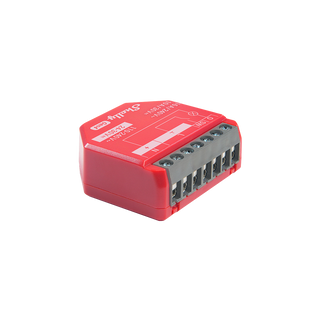

• Shelly 1PM Gen4

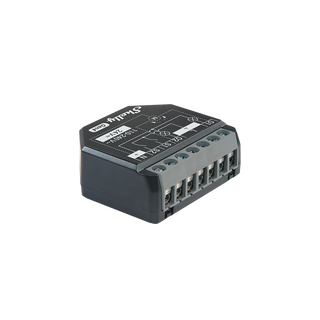

• Shelly 2PM Gen4
• Shelly 1 Mini Gen4
• Shelly Dimmer Gen4
• Shelly Plus Plug UK
• Shelly Duo Bulb E27
• Shelly Duo GU10

For setup and full technical detail, the official Shelly user & safety guide is attached at the bottom of this page.
