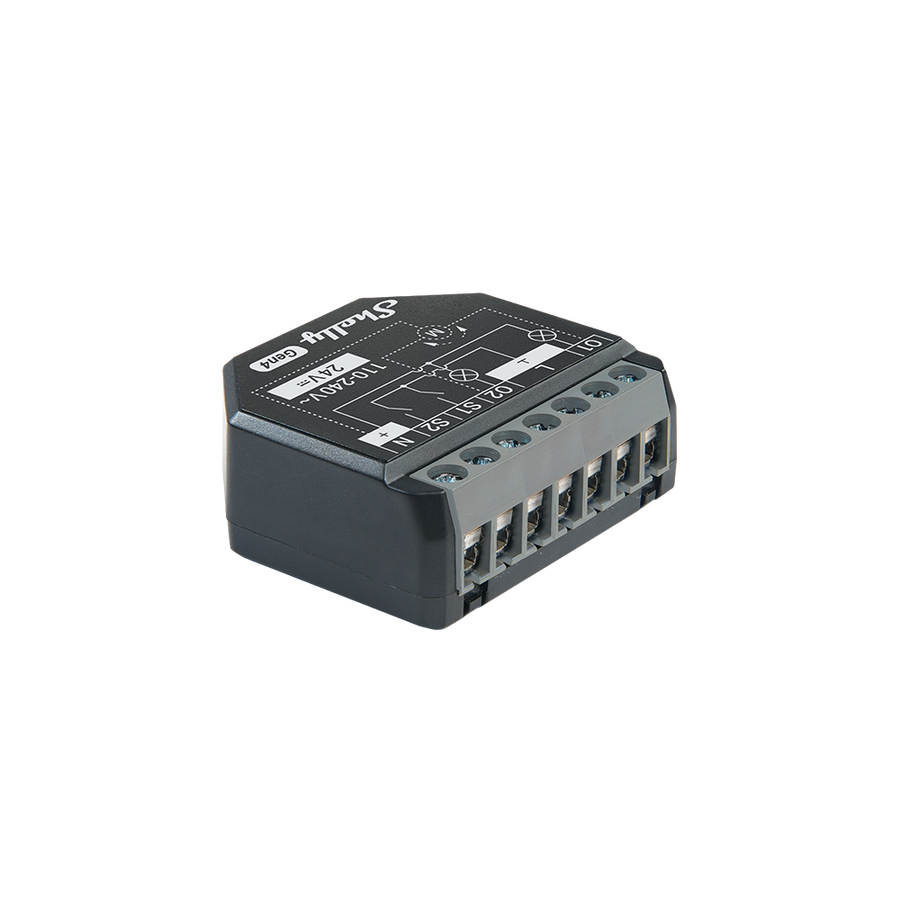

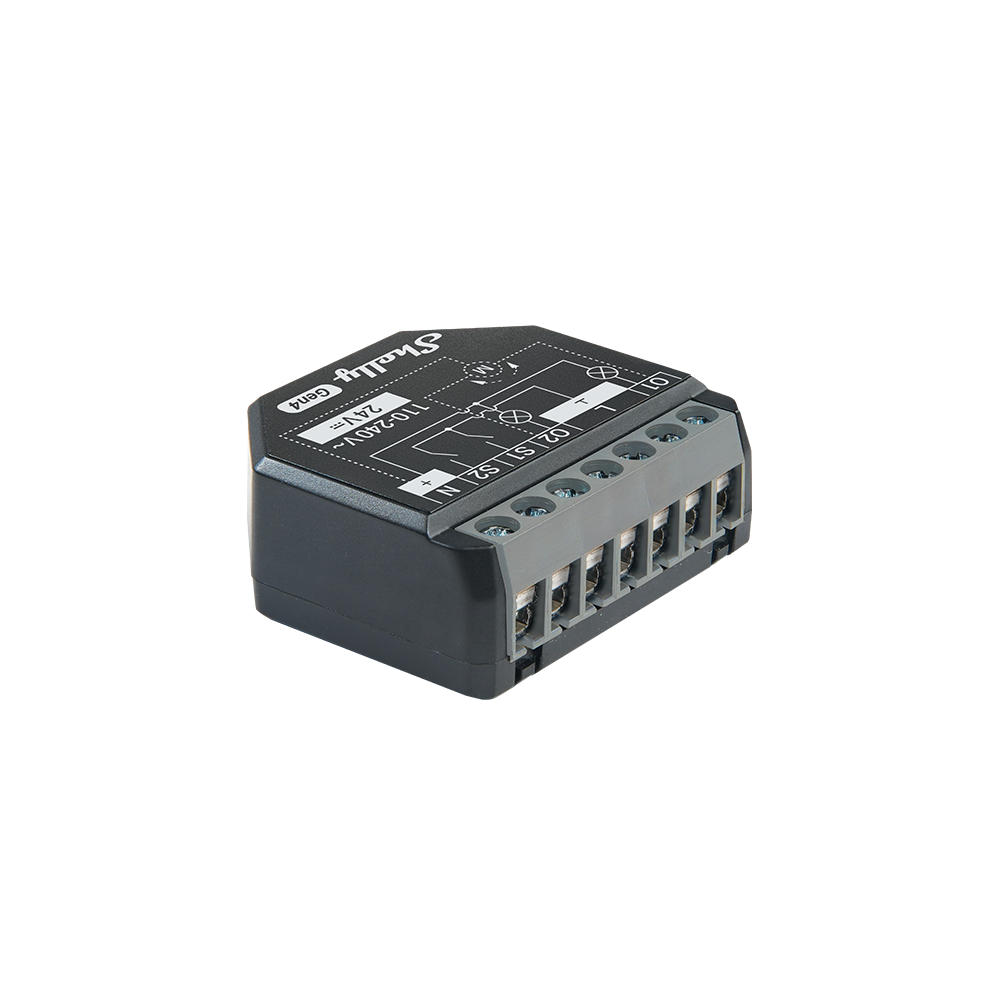

Shelly 2PM Gen4

What it’s for: power monitoring and 2-channel control. The Shelly 2PM Gen4 controls two circuits independently from one wall box — two lighting circuits, a light plus an extractor fan — with accurate per-channel power metering. Or switch it to cover mode and it becomes a smart controller for motorised blinds, curtains and roller shutters, with precise positioning and Venetian blind tilt support.

Like all Gen4 devices it speaks Wi-Fi 6, Bluetooth and Zigbee, is Matter compatible, and works with every major platform with no hub required. Scripting, MQTT and 20 schedules are built in.

Key features

• 2 independent channels — 10 A per channel, 16 A total
• Per-channel power metering — voltage, current, power and energy
• Cover mode for blinds, curtains & shutters — incl. Venetian tilt control
• Wi-Fi 6 (802.11 b/g/n/ax) · Bluetooth 5.0 · Zigbee 802.15.4 · Matter compatible
• Fits behind an existing switch in a standard wall box
• Works standalone on your local network — no hub, no subscription
• Scripting, MQTT, 20 schedules, embedded web interface
• Powered by 110–240 V AC or 24 V DC

In the box

• 1 × Shelly 2PM Gen4
• Quick start guide

Compatible with

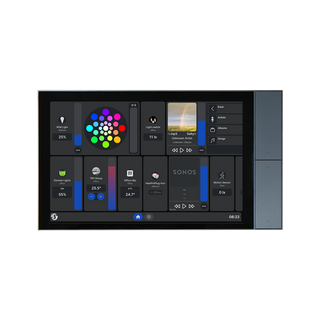

• Shelly Wall Display XL — central control panel for every Shelly device

For setup and full technical detail, the official Shelly user & safety guide is attached at the bottom of this page.
