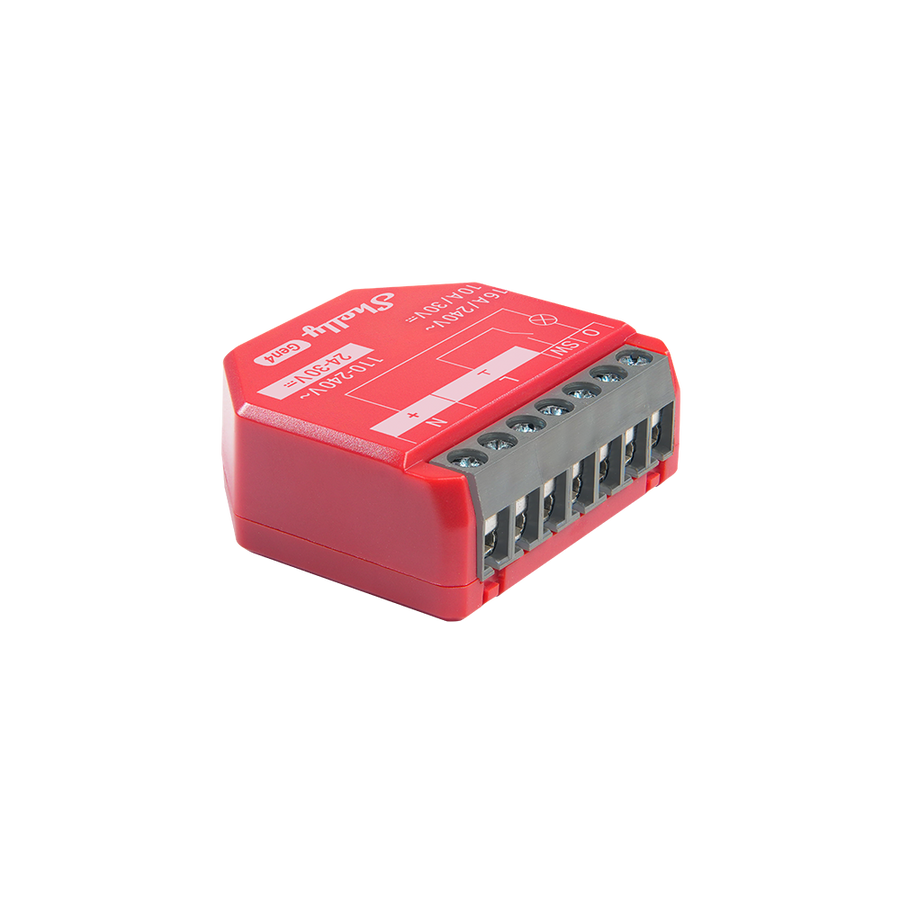

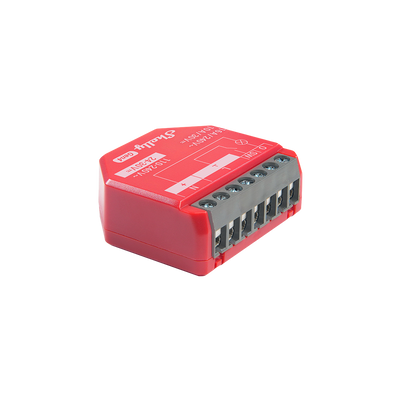

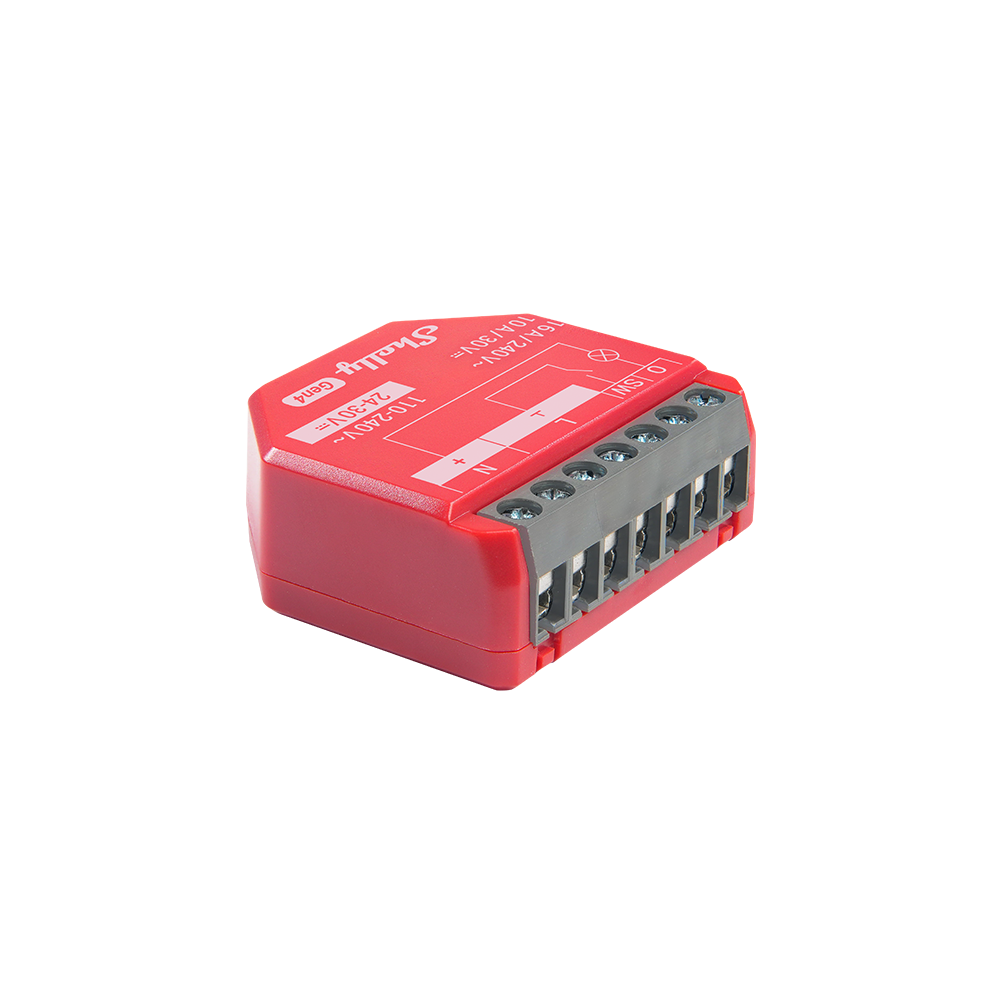

Shelly 1PM Gen4

What it’s for: power monitoring and 1-channel control. The Shelly 1PM Gen4 makes any single circuit smart — lights, heating, a fan, an immersion heater — and tells you exactly how much energy it uses. It hides behind your existing switch or socket in a standard wall box, so your switches look exactly the same but gain app, voice and automation control.

Gen4 brings multi-protocol connectivity: Wi-Fi 6, Bluetooth and Zigbee in one device, with native Matter compatibility — so it works with practically every smart-home platform, locally or in the cloud, and no hub is required. Built-in voltage, current and power metering let you track consumption per circuit in the Shelly app, and 20 schedules, scenes, scripting and MQTT cover everything from simple timers to full automation.

Key features

• 1 channel, up to 16 A @ 240 V — lights, heating and appliances
• Accurate power metering — voltage, current, power and energy

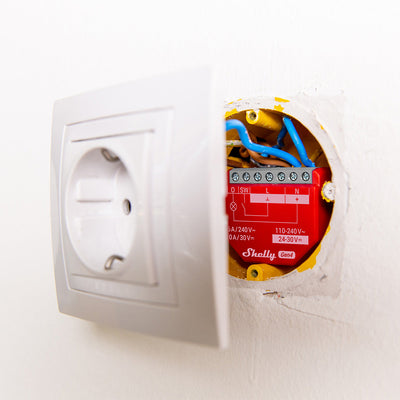

• Fits behind an existing switch or socket in a standard wall box
• Wi-Fi 6 (802.11 b/g/n/ax) · Bluetooth 5.0 · Zigbee 802.15.4 · Matter compatible
• Zigbee repeater and BLE gateway — strengthens your whole smart-home mesh
• Works standalone on your local network — no hub, no subscription
• Scripting, MQTT, 20 schedules, embedded web interface
• Powered by 110–240 V AC or 24–30 V DC

In the box

• 1 × Shelly 1PM Gen4
• Quick start guide

Compatible with

• Shelly Wall Display XL — central control panel for every Shelly device

For setup and full technical detail, the official Shelly user & safety guide is attached at the bottom of this page.
