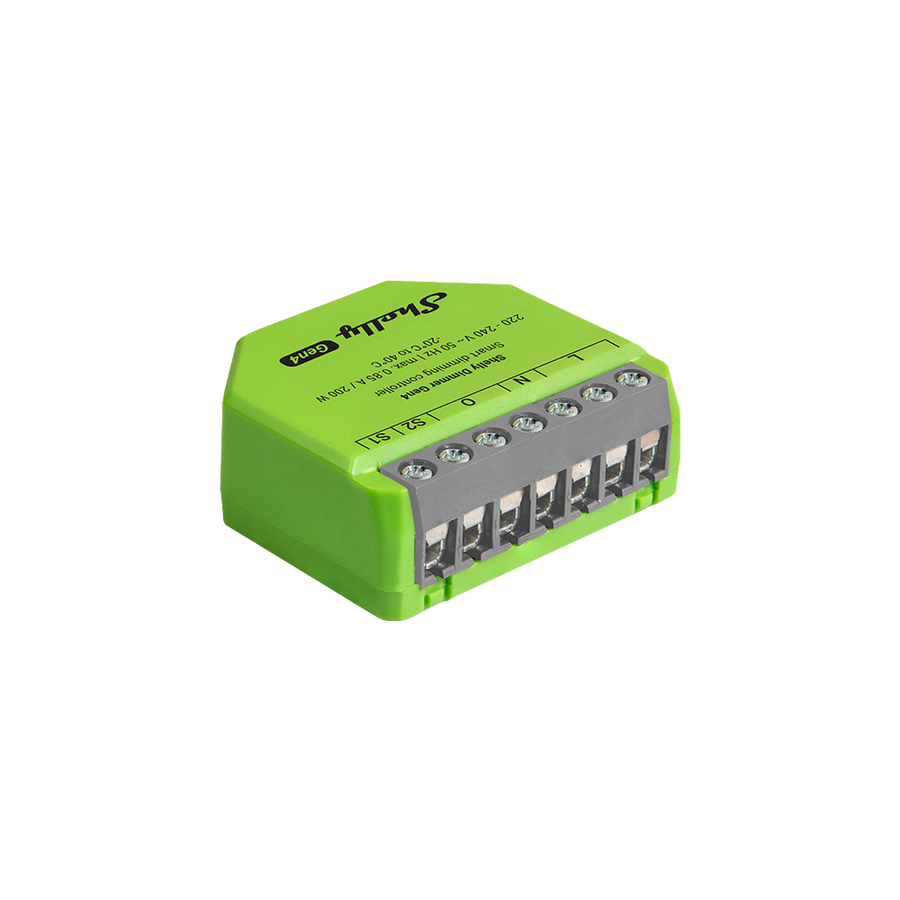

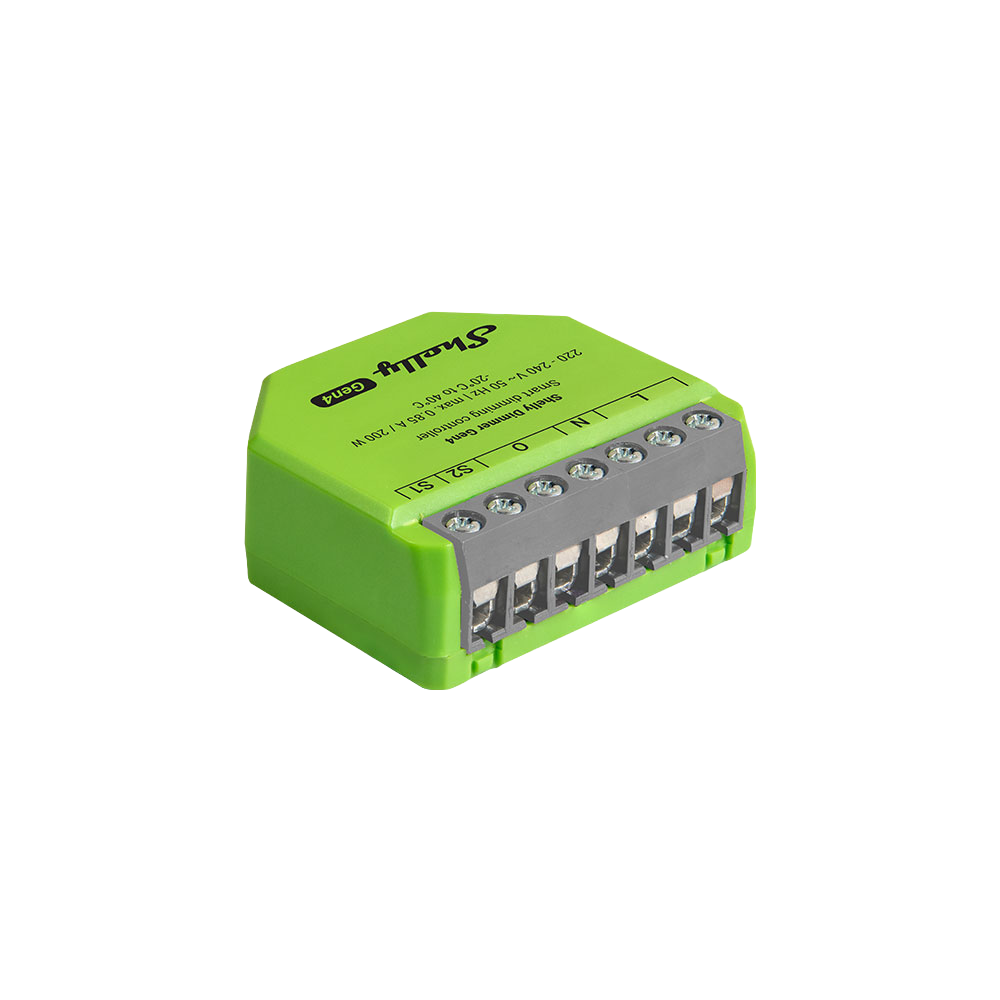

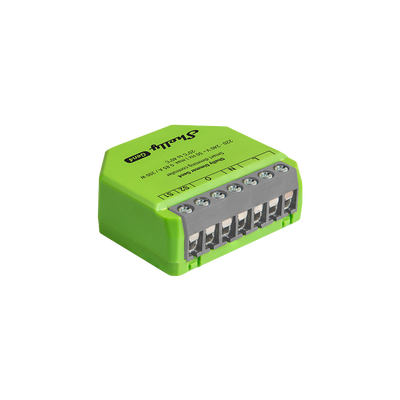

Shelly Dimmer Gen4

What it’s for: smooth dimming from your existing retractive switches. The Shelly Dimmer Gen4 sits behind a retractive (push-to-make) switch and adds smart, flicker-free trailing-edge dimming to your lighting circuit — press for on/off, hold to dim. Everything also works from the app, by voice, or on a schedule.

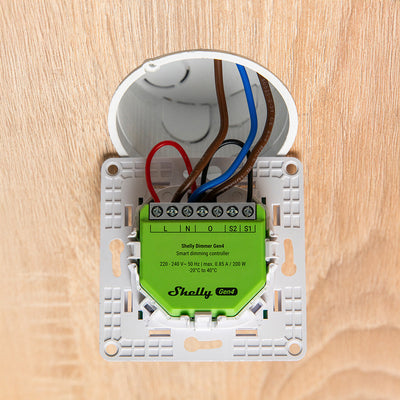

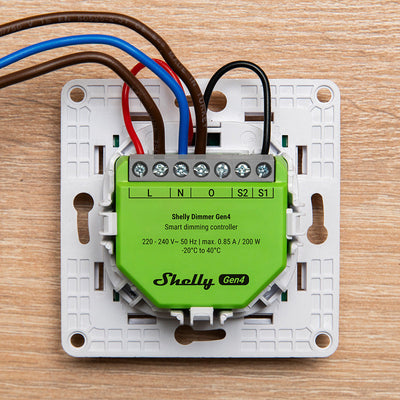

Crucially for UK homes, it does not require a neutral wire — it can be retrofitted into most existing switch back-boxes (loads from 20 W without neutral, or use a bypass for smaller loads). Trailing-edge dimming suits modern dimmable LEDs, and built-in voltage and current metering keep an eye on the circuit.

Key features

• Trailing-edge dimming for dimmable LED lighting — smooth and silent
• No neutral wire required (min. 20 W load, or add a Shelly Bypass)
• Designed for retractive / momentary switches — press on/off, hold to dim
• Up to 200 W of dimmable load
• Wi-Fi 6 (802.11 b/g/n/ax) · Bluetooth 5.0 · Zigbee 802.15.4 · Matter compatible · Zigbee repeater
• Power metering (with neutral connected)
• Scripting, MQTT, 20 schedules, embedded web interface

In the box

• 1 × Shelly Dimmer Gen4
• Quick start guide

Compatible with

• Shelly Wall Display XL — central control panel for every Shelly device

For setup and full technical detail, the official Shelly user & safety guide is attached at the bottom of this page.
