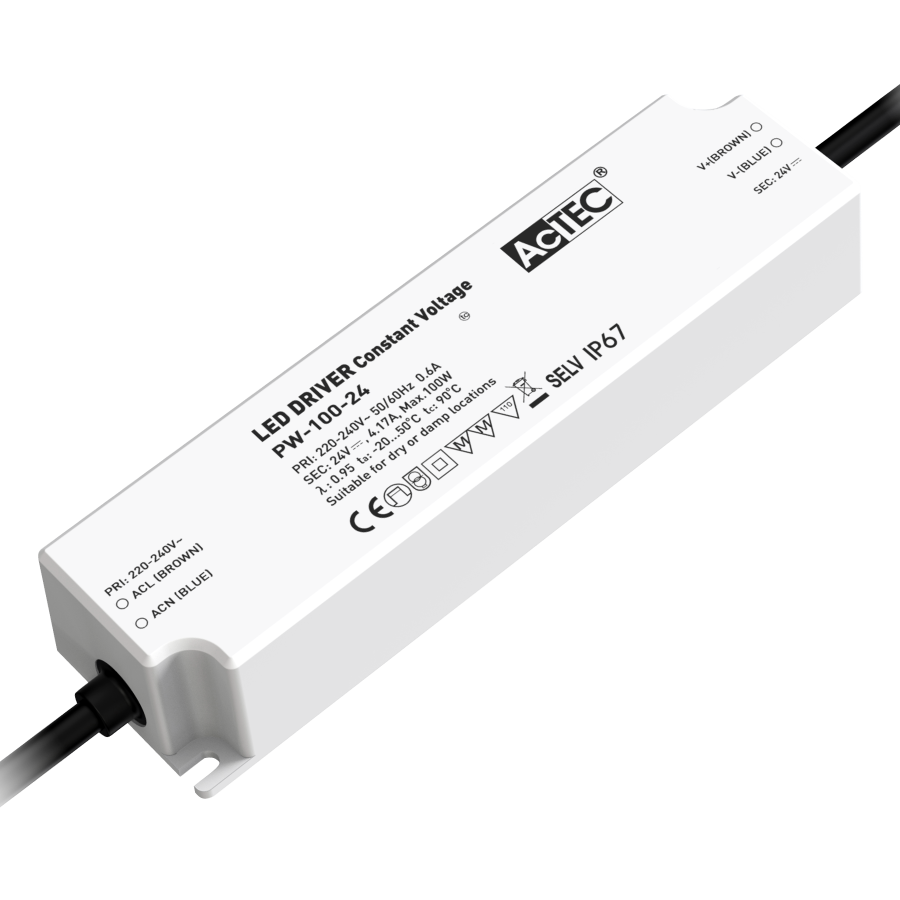

LED DriverPW-100-24 100W 24V LED Driver (IP67)
Product Details
What it’s for: the 230V-to-24V heart of a strip installation. A constant-voltage driver converts mains to the safe 24V⎓ your LED strip runs on. This AcTec unit delivers up to 100W (4.17A at 24V) of clean, analogue flicker-free power — enough for roughly 5 metres of our 14.4W/m strip with the 20% sizing headroom we recommend. The all-rounder — a full 5m reel with headroom to spare.
Sizing rule: add up your strip wattage (metres × W/m) and choose a driver rated at least 20% higher, so it never runs at its limit. IP67-sealed, it can live in a ceiling void, under a cabinet or outdoors.
Mains connection must be carried out by a qualified electrician. The driver comes with flying leads on both sides — 230V mains in, 24V⎓ out to the strip. Hot plug-in of LEDs is not permitted.
Key features
- Analogue flicker-free output — clean, quiet light with no visible PWM
- Built-in active PFC — power factor 0.95
- IP67 sealed plastic housing — dry, damp or outdoor locations
- SELV isolated output — safe extra-low voltage for strip circuits
- Auto-recovery protection: open circuit, short circuit, overload, over-temperature
- 2kV / 4kV surge immunity
- Flying leads both sides — no gland kits needed
- TÜV certified · CB · CE · suitable for Class I & II luminaires
In the box
- 1 × PW-100-24 LED driver
Works with
- Our 24V LED strip reels
- SkyDance WiFi & RF controllers — wire between driver and strip for smart control
- Wago 221 lever connectors — for the low-voltage joints
1-year warranty.
The official AcTec datasheet — full electrical parameters, dimension drawing and wiring diagram — is attached at the bottom of this page.
