LED Light Sheet 610 × 305 mm — 4000K CRI90
Product Details

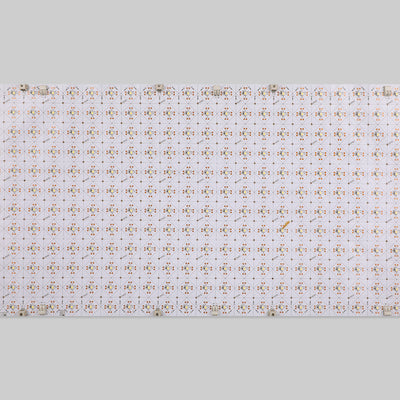

Not a strip — a sheet of light. 288 LEDs on a flexible 610 × 305 mm panel just 1 mm thick, cuttable at every single LED on a 25.4 mm grid, in straight lines or 45° diagonals. Trim it into squares, L-shapes, donuts, letters — whatever the job needs — and it stays evenly lit edge to edge.

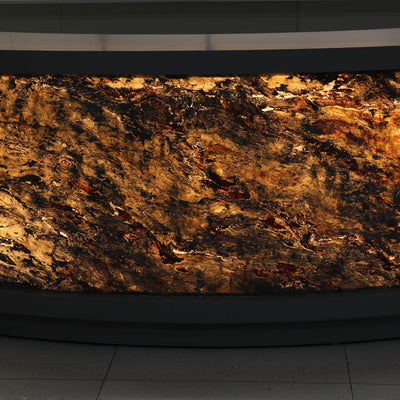

It is the answer for backlighting: signage, mirrors, splashbacks, onyx and stone counters, stretched fabric — anywhere a strip grid would show hot lines. On-board XH 2-pin connectors join sheet to sheet or sheet to driver without soldering, and the 3M-taped back bonds to flat or gently curved surfaces.
Built on the manufacturer's Plus Series specification: Epistar / San'an LED chips, Intermatix phosphor, ShinEtsu & Dow Corning encapsulation glue and Heraeus 99.99% pure gold bond wire, mounted on a 3oz-copper white PCB for proper heat spreading and stable output along the full run.
Key features
- Full sheet of light — 2730 lm at 30 W (CRI ≥ 90)
- Cut at any LED — 25.4 mm grid, straight or 45° cuts

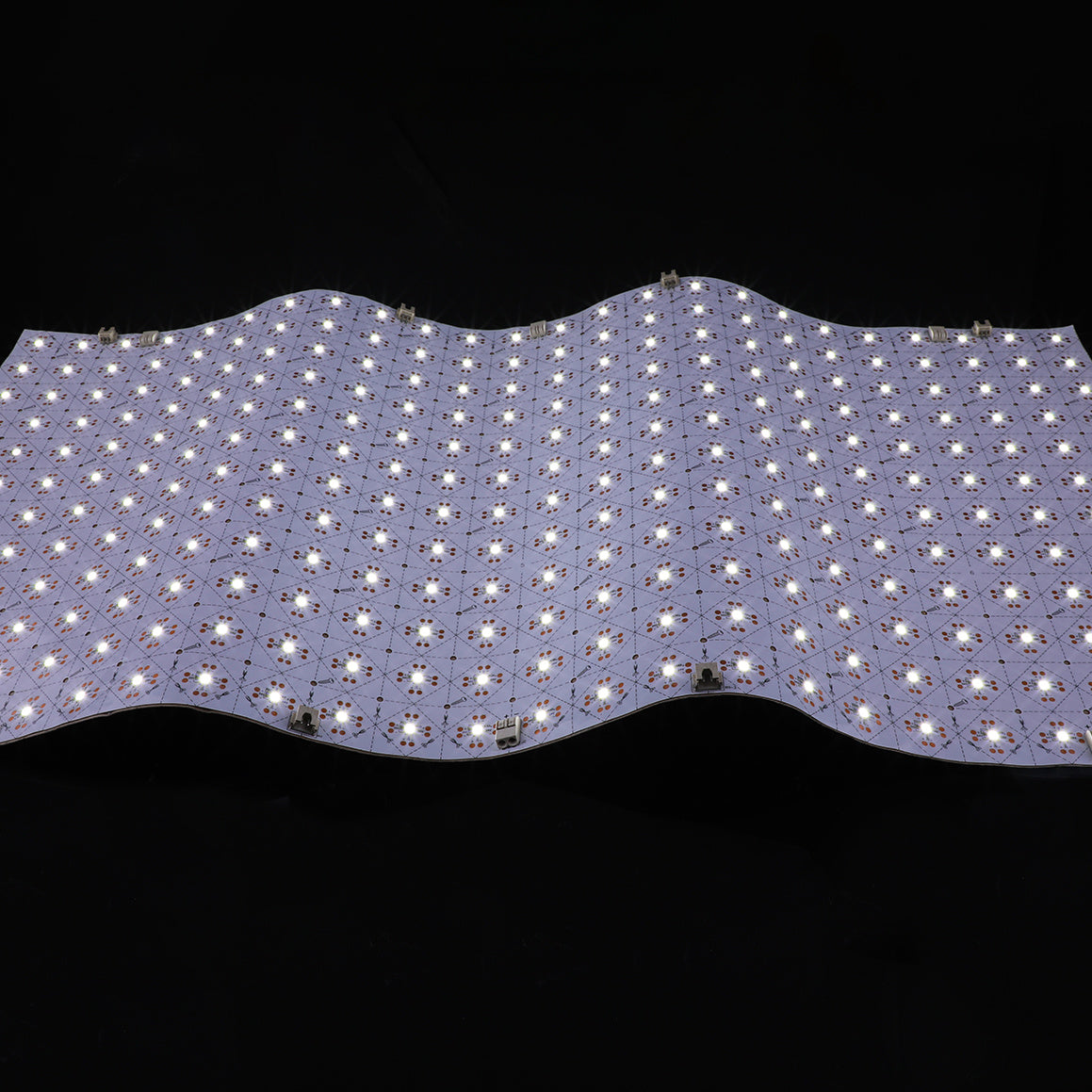

- Just 1 mm thin and flexible — follows gentle curves
- 288 × SMD2835 LEDs, 4000K natural white
- Solder-free: on-board XH 2-pin connectors for solder-free sheet-to-sheet joins
- 3M 300LSE adhesive backing, full coverage
- Bond flat to a solid surface — heat-sinking is mandatory
In the box
- 1 × LED light sheet 610 × 305 mm with 12 on-board XH 2-pin connectors
- 300 mm power cable with XH plug
- 50 mm XH sheet-to-sheet extension cable
- Rubber pellets for installation — included free
- Anti-static (ESD) protective packaging
