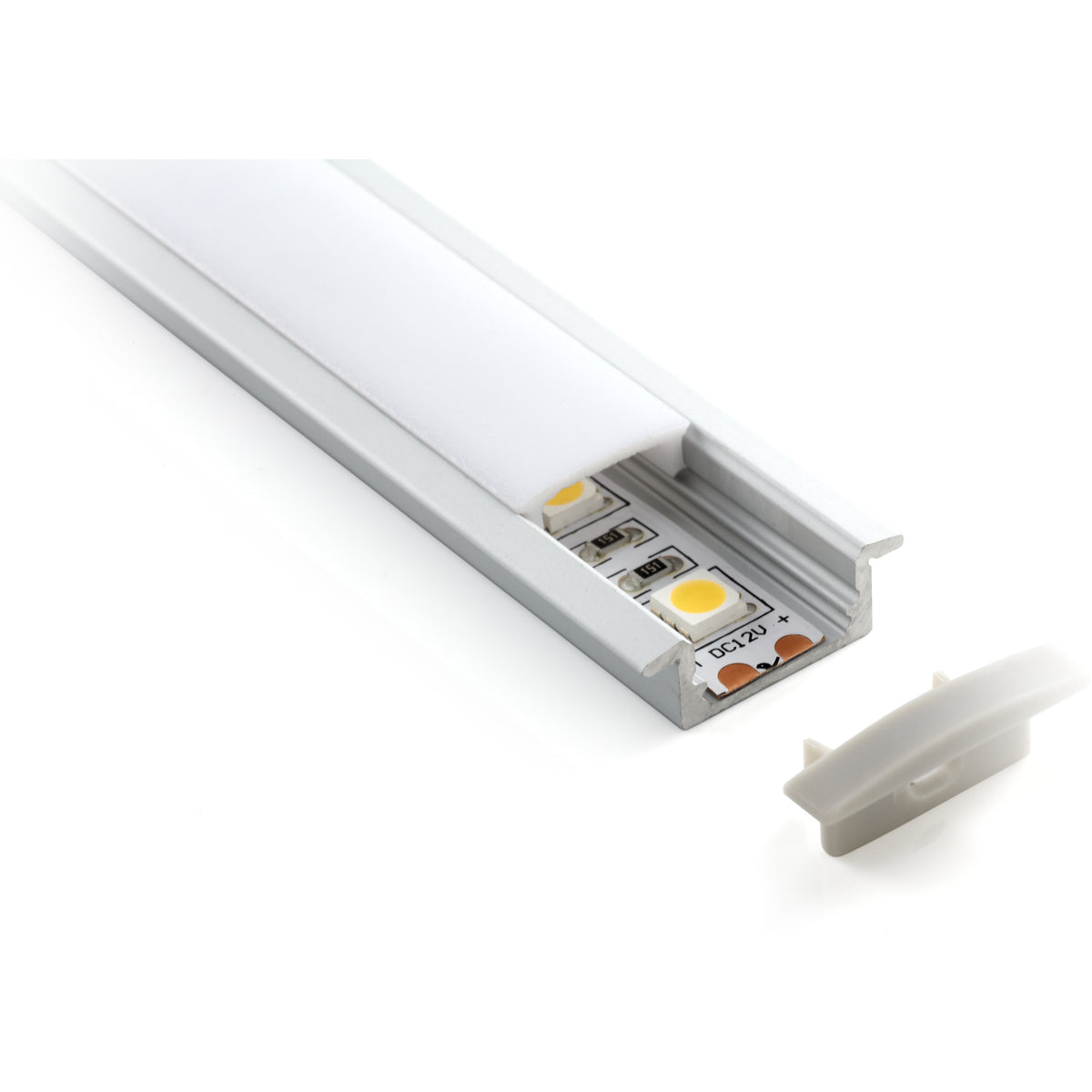

Recessed Profile

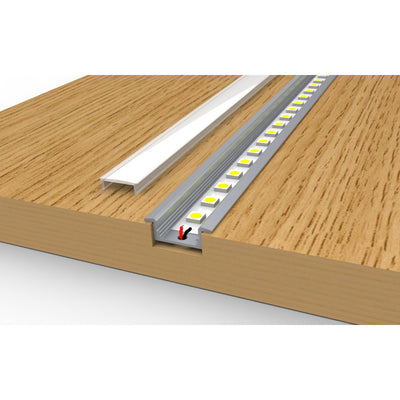

A wide-lipped channel that drops into a routed groove and finishes flush, so all anyone sees is the light. The 23.2 mm flange covers the cut edge of the rebate, which means your joinery does not have to be perfect underneath.

This is the profile for under kitchen worktops and inside wardrobes — anywhere the strip is close to eye level and a bare reel would show every dot. Recessing it also keeps the LEDs out of the way of hands, shelves and sliding doors.

Strip recommendation — 240 LED/m. The diffuser on this profile sits in your eyeline, so we recommend our 240 LED/m high-density strip. The closer LED spacing reads as one continuous line of light rather than a row of individual dots.

Key features

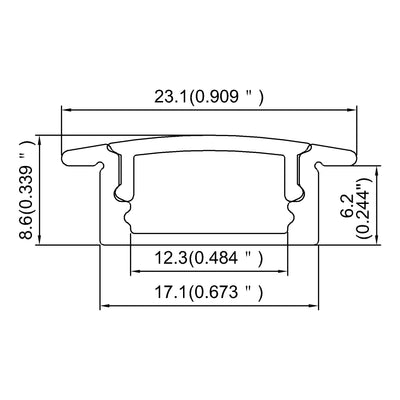

• Wide 23.2 mm lip hides the edge of the rebate
• Finishes flush — only the diffuser shows
• Anodised aluminium heatsinks the strip for a longer life
• Frosted diffuser for a continuous, dot-free line
• Takes strip up to 12 mm wide
• Cuts to length on site

In the box

• 1 × Recessed aluminium profile
• 1 × Frosted diffuser (fitted)

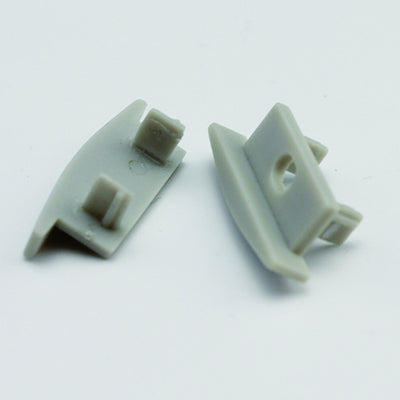

• 2 × End caps

Compatible with

• Our 240 LED/m high-density 24V strip reels — recommended for this profile
• 24V constant-voltage LED drivers
• Connectors, hippo joints and DC cable
