Hippo PCB Connector — 120 LED/m IP20 Strip

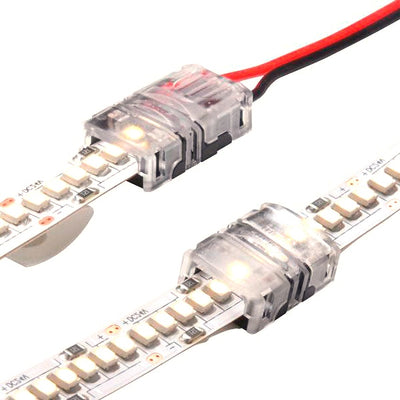

What it’s for: powering our 120 LED/m IP20 strip — no soldering. A Hippo-M buckle connector that clamps straight onto the strip’s 10mm PCB solder pads for a clean, solder-free connection. Cut the strip on the cut line, feed in your cable, snap the buckle shut — the clamp bites through to the strip’s pads and through the cable’s insulation in one action, with no iron, no flux and no soldering skills needed.

It fits any 10mm-wide 2-pin single-colour IP20 strip (5050, 2835 and high-density types included), and is the purpose-matched connector for our 120 LED/m reel.

No cable is included: you fit your own 2-core cable — and there’s no need to strip it. Feed the cable in as it comes and the clamp pierces the insulation to make contact as it closes. Use AWG22–18 (0.34–0.82mm²) cable — our 50m drum of Time 2192Y 2-core flex is a perfect match. The buckle is one-time-use: once snapped shut it stays shut, so position it before you clamp.

Key features

• Purpose-matched to our 120 LED/m IP20 LED strip (10mm PCB)
• Solder-free Hippo-M buckle — clamps directly onto the strip’s solder pads
• No cable stripping — the clamp pierces the insulation as it closes
• Fits any 10mm 2-pin single-colour IP20 strip — 5050, 2835 & high-density
• Takes AWG22–18 (0.34–0.82mm²) cable — cable not included

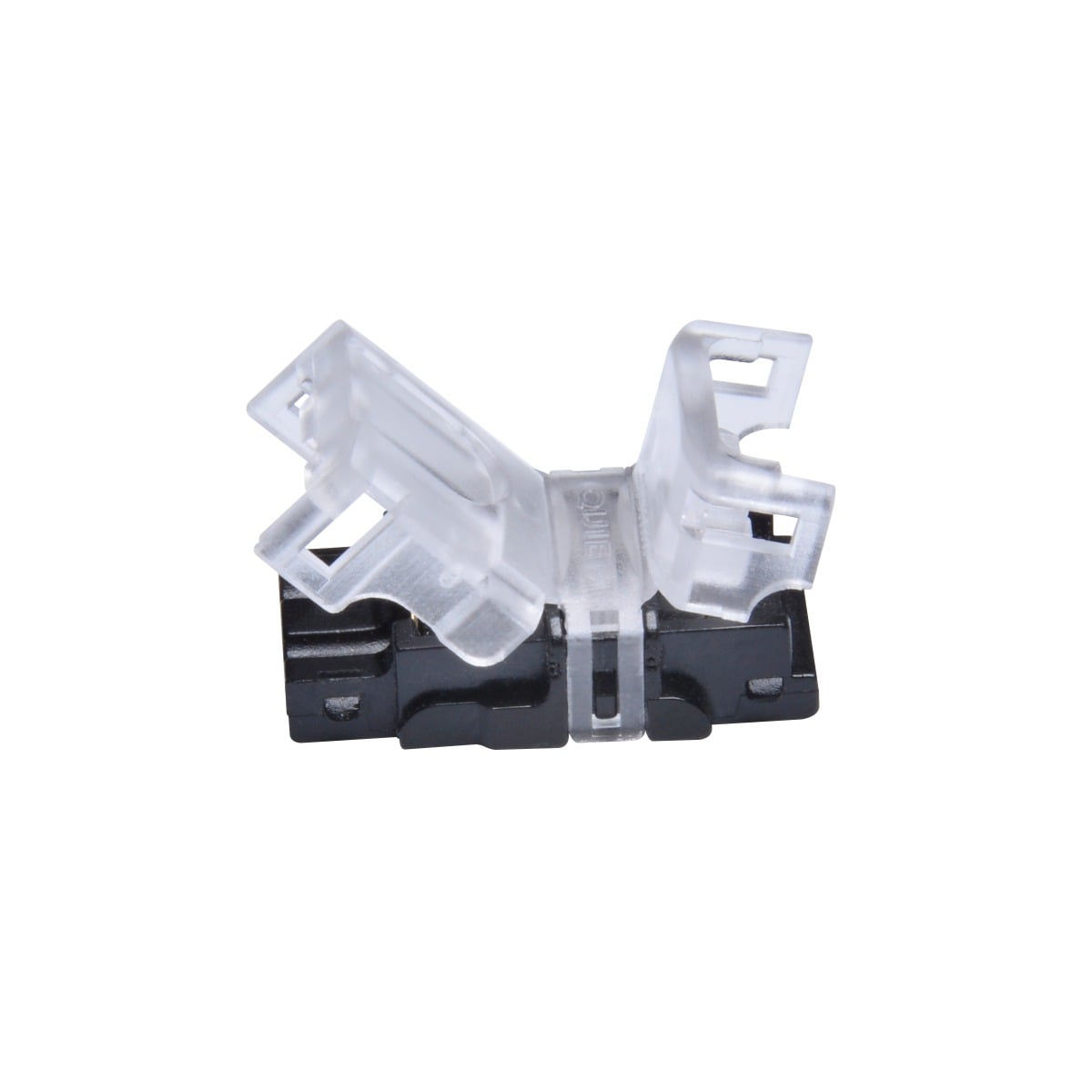

• One-time-use buckle: locks permanently once closed
• IP20 — for indoor, dry installations
• Low-profile — fits inside our aluminium profiles

In the box

• 1 × Hippo-M PCB-to-cable connector (no cable included)

Compatible with

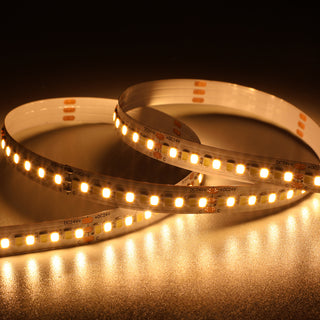

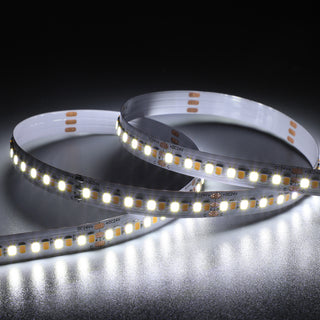

• Our 24V LED strip reels
• Time 2192Y 2-core flexible cable — 50m drum
